Máquina de impresión Horizon SL 5500 I 2005 I 11300000

Number of Colours: 12

-

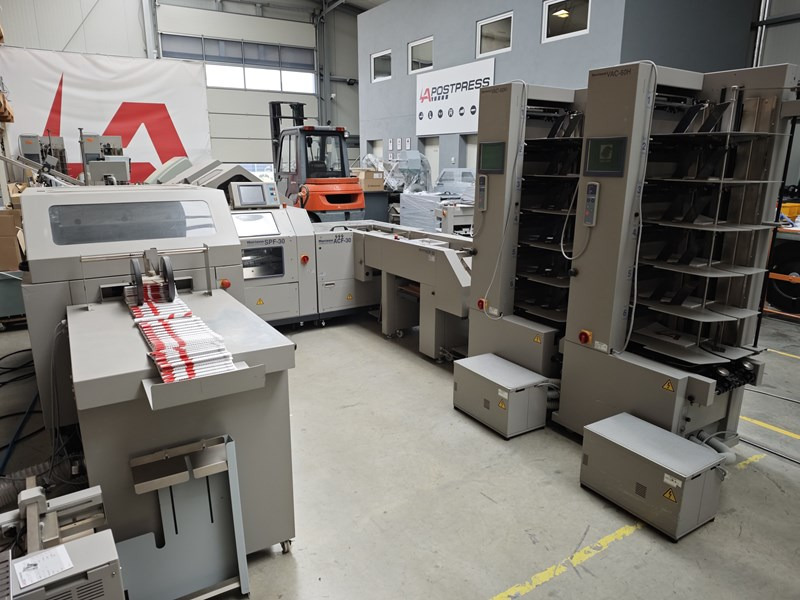

Horizon StitchLiner SL-5500

The Horizon StitchLiner 5500 is a powerful all-in-one solution for booklet production. It combines collating, creasing, folding, stitching, and three-knife trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous benefits for print shops, binders, and on-demand printing.

This StitchLiner 5500 includes the following components:

- VAC-60Ha and VAC-60Hc Collating Towers

- SA-40 Shingle Conveyor

- HOF-30 Sheet Feeder

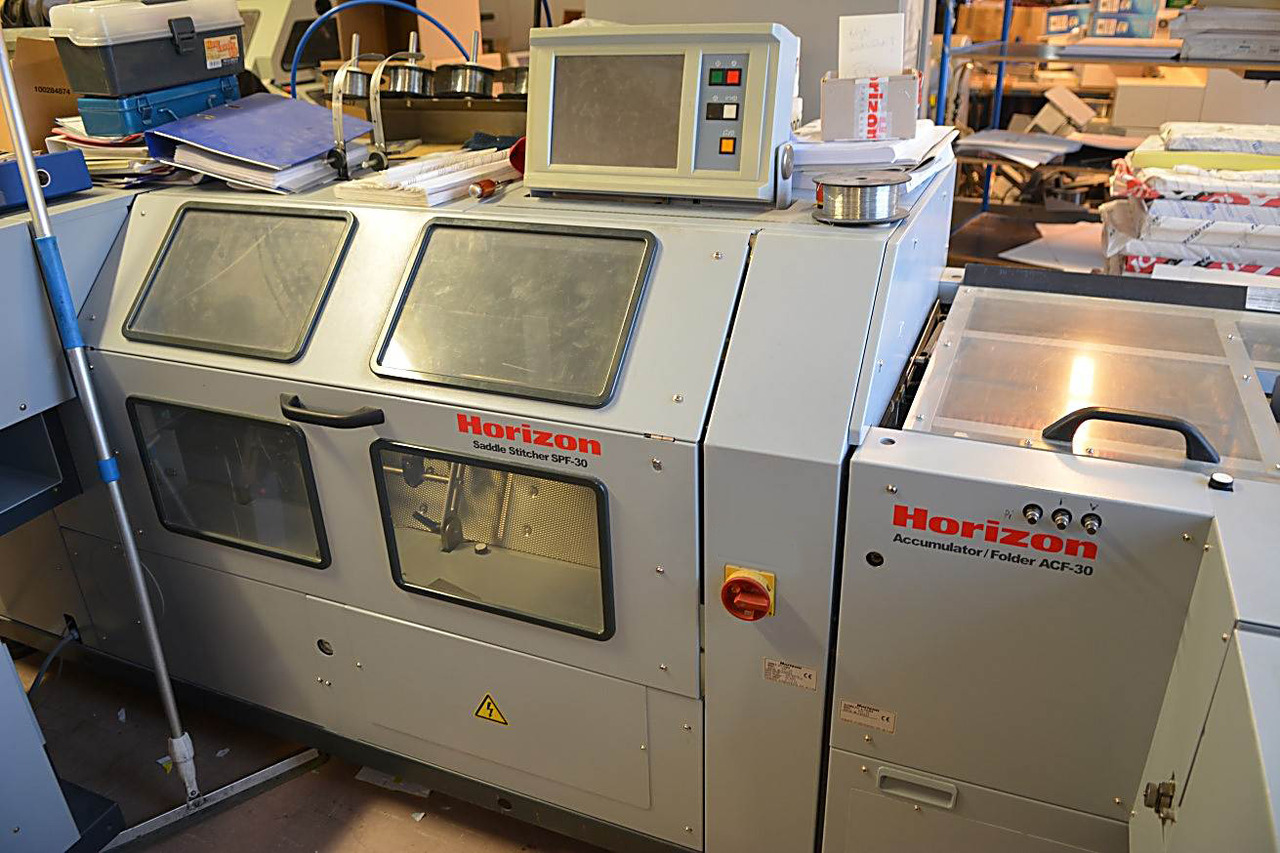

- ACF-30 Accumulator and Folder

- SPF-30S Saddle Stitcher

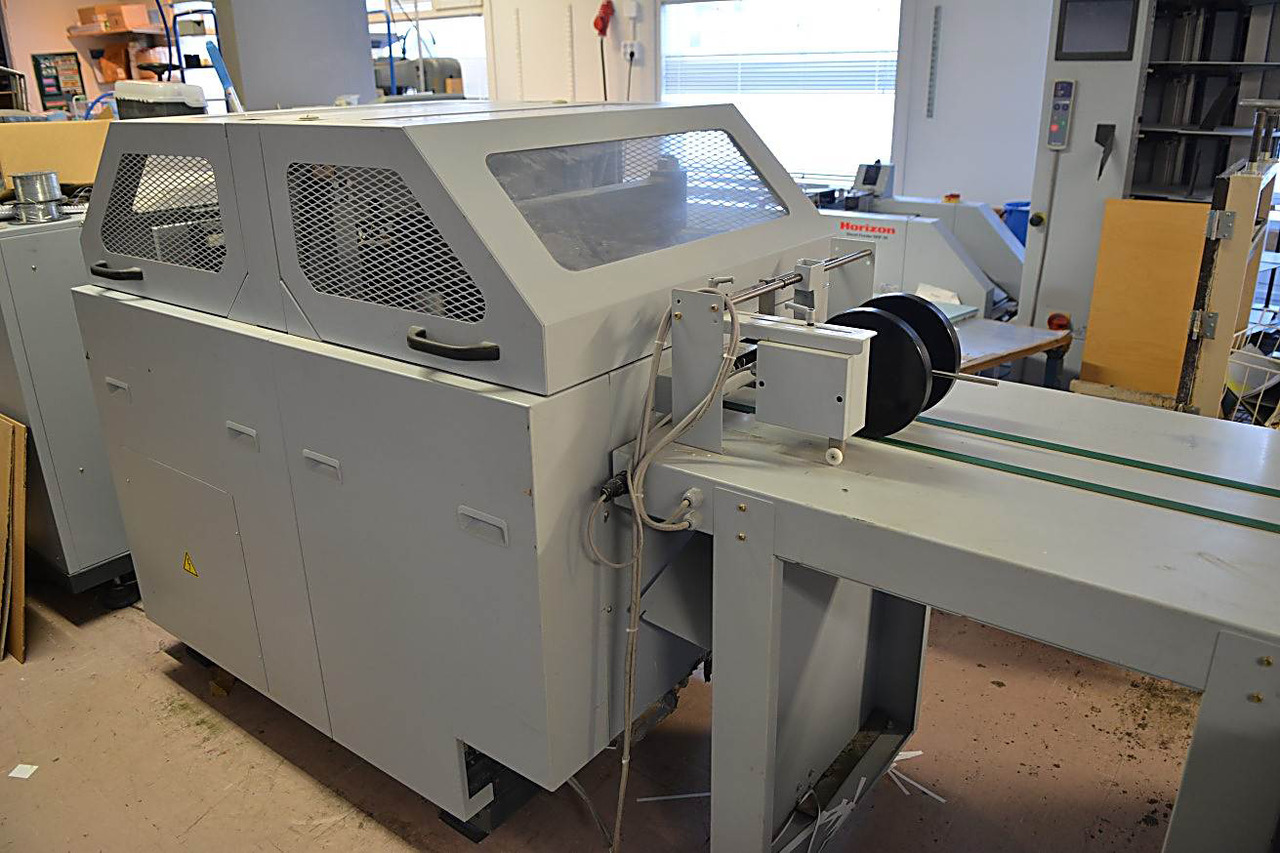

- HTS-30 Three-Knife Trimmer

- TB-30 Transport Belt

Key Features:

- 12 stations

- U-shaped layout: Efficient space utilization and easy monitoring

- Inline production from collating to finished product

- Variable data processing: Handles personalized prints and variable page counts, ideal for digital printing

- Fully automatic format adjustment for quick job changes

- Touchscreen for user-friendly operation, even for less experienced operators

Specifications:

- Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm

- Paper weight: 40-350 gsm

- Processing thickness: 8-200 pages (max. 5 mm spine thickness)

- Production speed: Up to 5,500 booklets/hour

- Stitch distance: 60-150 mm

Technical Details:

- Trimming (untrimmed): Max. 350 x 250 mm, Min. 140 x 103 mm

- Trimming (trimmed): Max. 312 x 230 mm, Min. 120 x 95 mm

- Power supply: 400V / 50Hz

- Space requirement: Min. 5,709 x 3,240 mm

- Total weight: Approx. 2,120 kg
