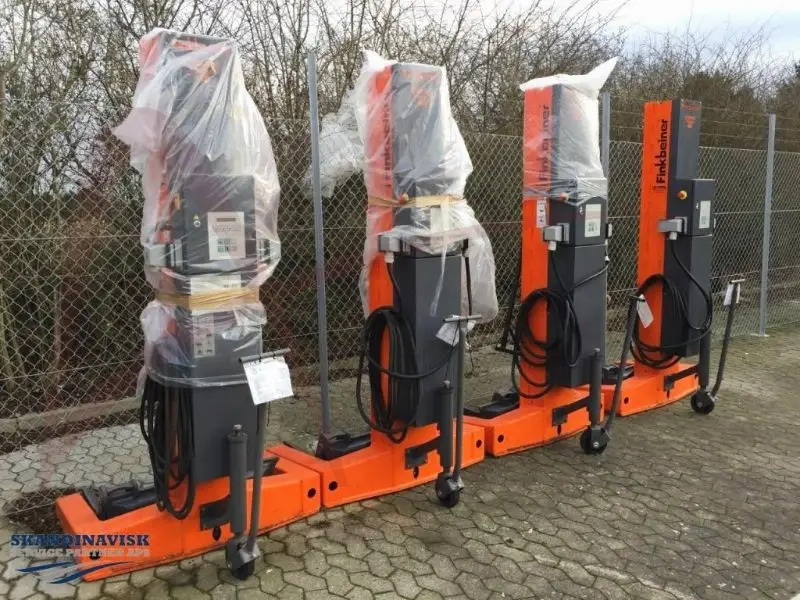

Equipo de taller - posibilidad de alquiler FINKBEINER EHB807V11

Refurbished

-

Capacity: 7,5 t

-

Sale

-

Mobile column lift

Load support

Adjustable wheel forks 155R13 – 13R 22.5, Ø 550 – 1140mm

Length of lifting fork 385 mm, suitable for super singles

Lifting stroke: 1750mm

Speed: Up 70 sec., Down 60 sec.

Slow speed for fine positioning

Soft start with continuous increase of speed

Operation

Up / Down from each column

Operation modes: All / Single

Interconnecting cables from column to column around the vehicle in a circuit with one open end to drive-in/out

Interconnecting cable per slave column, plugs on both ends, length 10 m

Power supply cable 10 m at master column

Max. 24 columns per lift set (4 master, 20 slave columns)

Display indication | LCD display at master column, optional at slave columns| Active columns within lift set| Active operation mode| Height in „mm“

Control: Smooth synchronization without abrupt speed variations, height tolerance of max. 2mm

Continuous monitoring of all operational functions

Control voltage 24V DCDrive

Electro-hydraulic Motor 2.2 KW per column

Hydraulic cylinder self-lubricating, cylinder rod encased by steel tube

Proportional valves for smooth control without any increments

Connection | 400 V / 3 Ph / 50 Hz, fuse 35 A (per master column)

Positioning wheels

Rear: wheel jack, spring-loaded, with locking brake

Front: Retractable spring-loaded front wheels for minimum floor pressure.

Dimensions | 1150 x 1130 x 2255mm (l x w x h) per column.Weight | 540 kg per column

Protection class: IP 65 Safety features.

Double load securing with hydraulic and mechanical locks.

Hydraulic pressure relief valve preventing overload.

Main switch lockable, with emergency stop at each column Safety standards | CE, EN 1493
