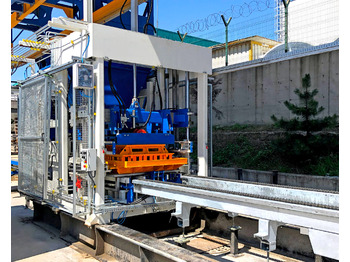

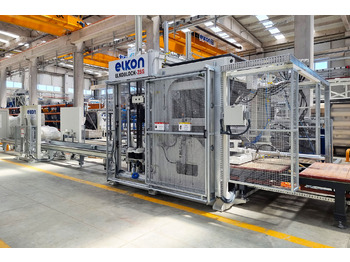

Leasing de ELKON Elkoblock-25 Block Making Machine

Capacity (10 hours production): ~600 m² concrete paver or 10.000 pcs 20x40x20 cm hollow block

- For production of blocks from 60 mm to 300 mm

- Forming area: 1035x860 mm

- Pallet size: 1200x950x180 mm

- Total install power: 52 kW

Technical Specifications;

HYDRAULICS

- High performance reliable hydraulic system Brand: REXROTH (GERMANY)

- 40 l/min capacity oil cooler with fan

- Proportional valve controls for changing production speed depending on product

VIBRATION

- Vibrators brand are ELKON

- Tamper head vibration motors: 2,1 kW x 2 units

- Vibrating table vibration motors: 4 kW x 2 units

- Vibration force: 38 kNx2 units

DESIGN

- Heavy duty design, robust machine structure and certified high grade steels used in production ensures highest durability and longest life time

- Four columns design for tamper head

- High grade steel used in important places ensures optimum performance for many years.

- Exchangeable wear plates (DOMEX S700)

- 1500 liters concrete hopper

- Electrical control manual level indicator on concrete hopper

- Fully comply with CE safety regulations

- Galvanized safety guards around all required points

CONTROL SYSTEM & POWER BOARD

- Semi automatic control from user friendly automation system which includes SIEMENS touch panel and SIEMENS PLC

- All electrical components inside power board are SIEMENS-GERMANY brand.

Empty Pallet feeding hopper and conveyor is included.

Pallet Conveyor for Wet Products is included.

Pallet Elevator for pallets with legs is included
